AH type

AH type's parts(tube, Al Shoe, Linings, etc.) are separated so it can be replaced each parts easily.
Also the Aluminum shoes help the air cooling by ventilation.

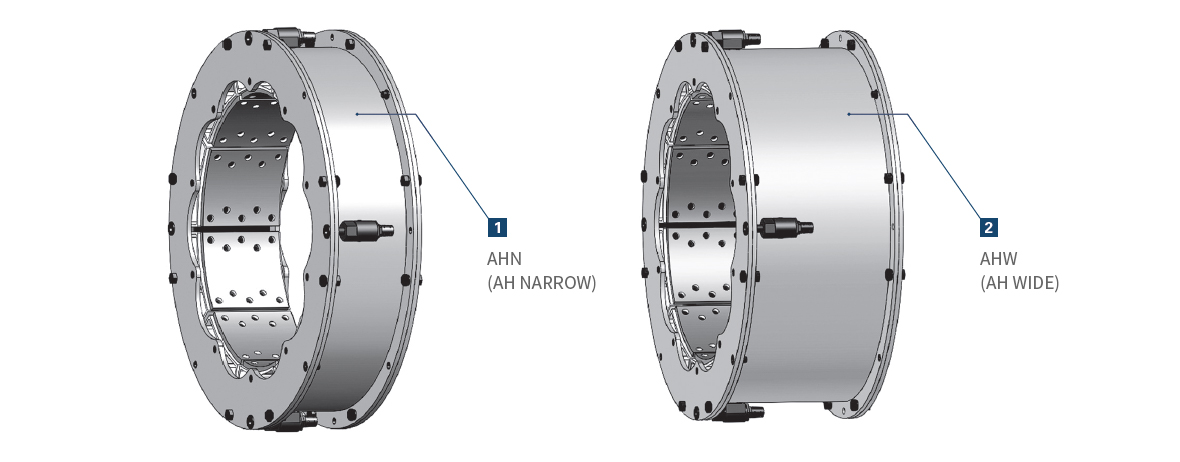

· AH type can group into classes as follows.

- AHN (AH NARROW) : Under 200mm width
- AHW (AH WIDE) : Over 200mm width

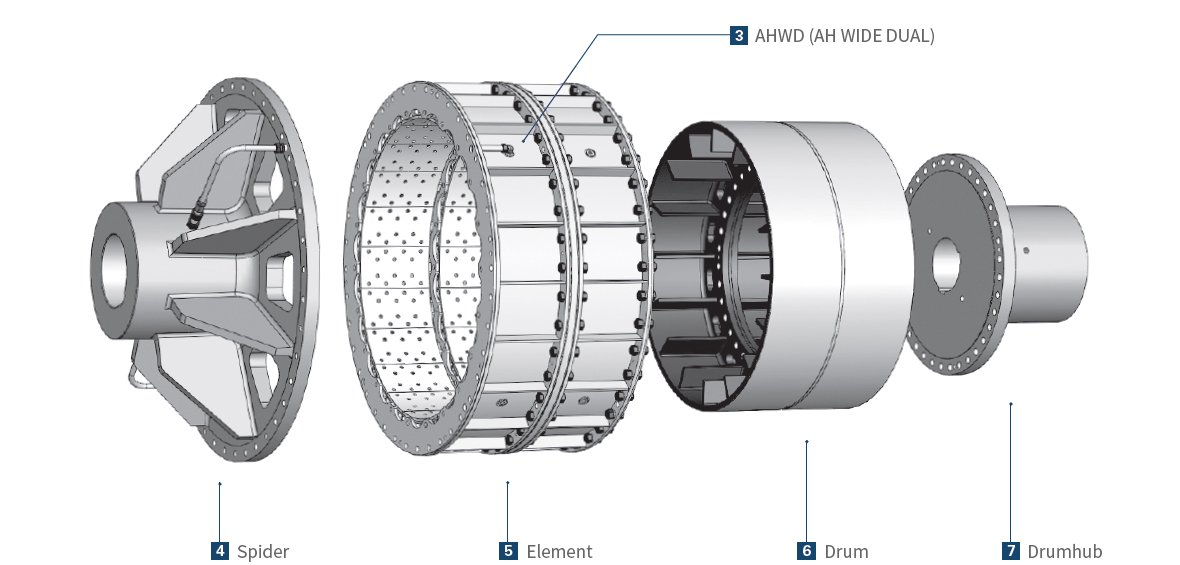

- AHWD (AH WIDE DUAL) : AHW two together

· AH TYPE ELEMENT

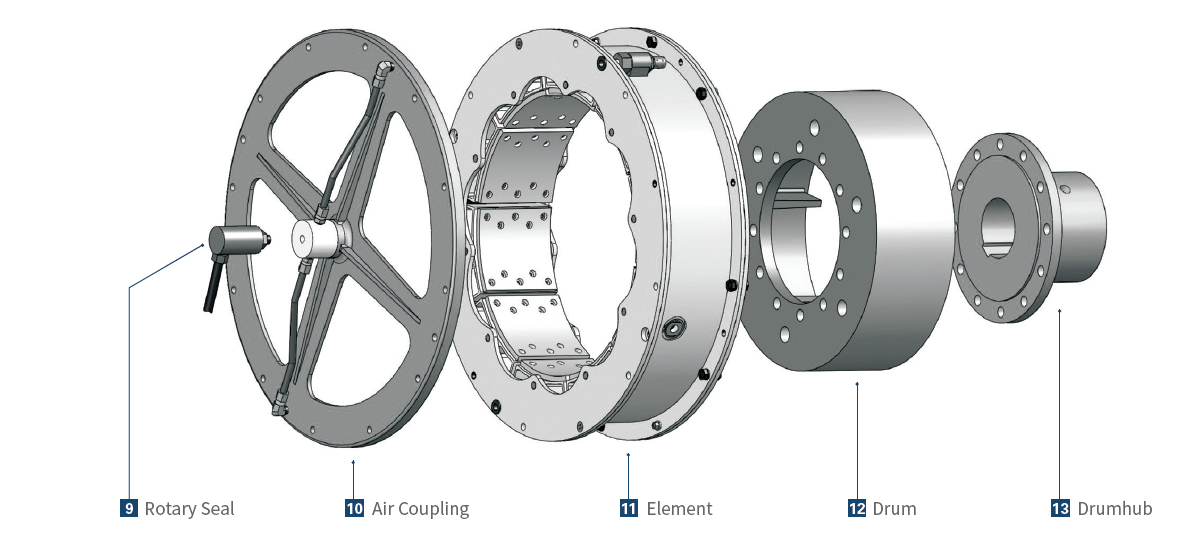

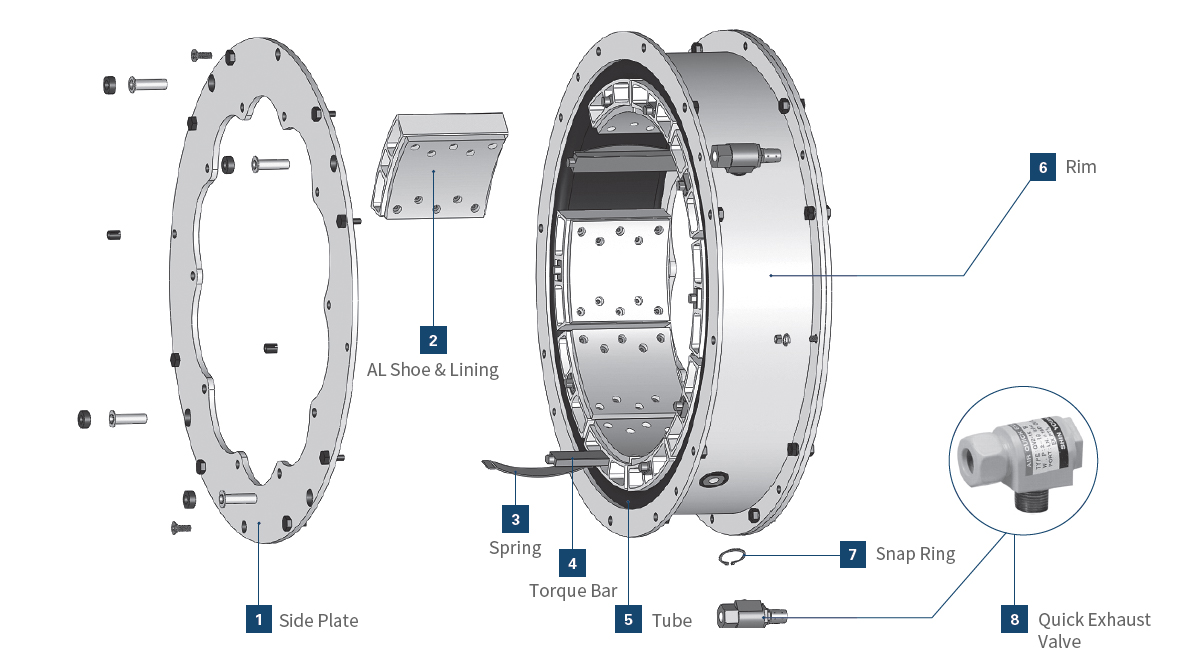

· PARTS

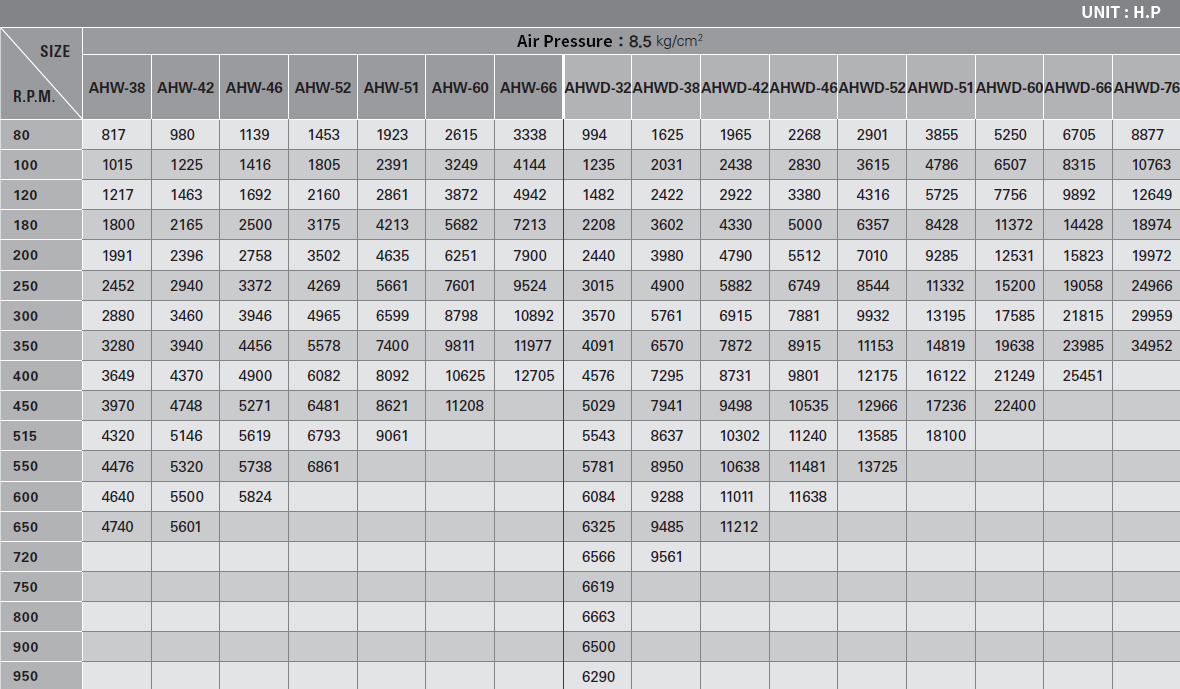

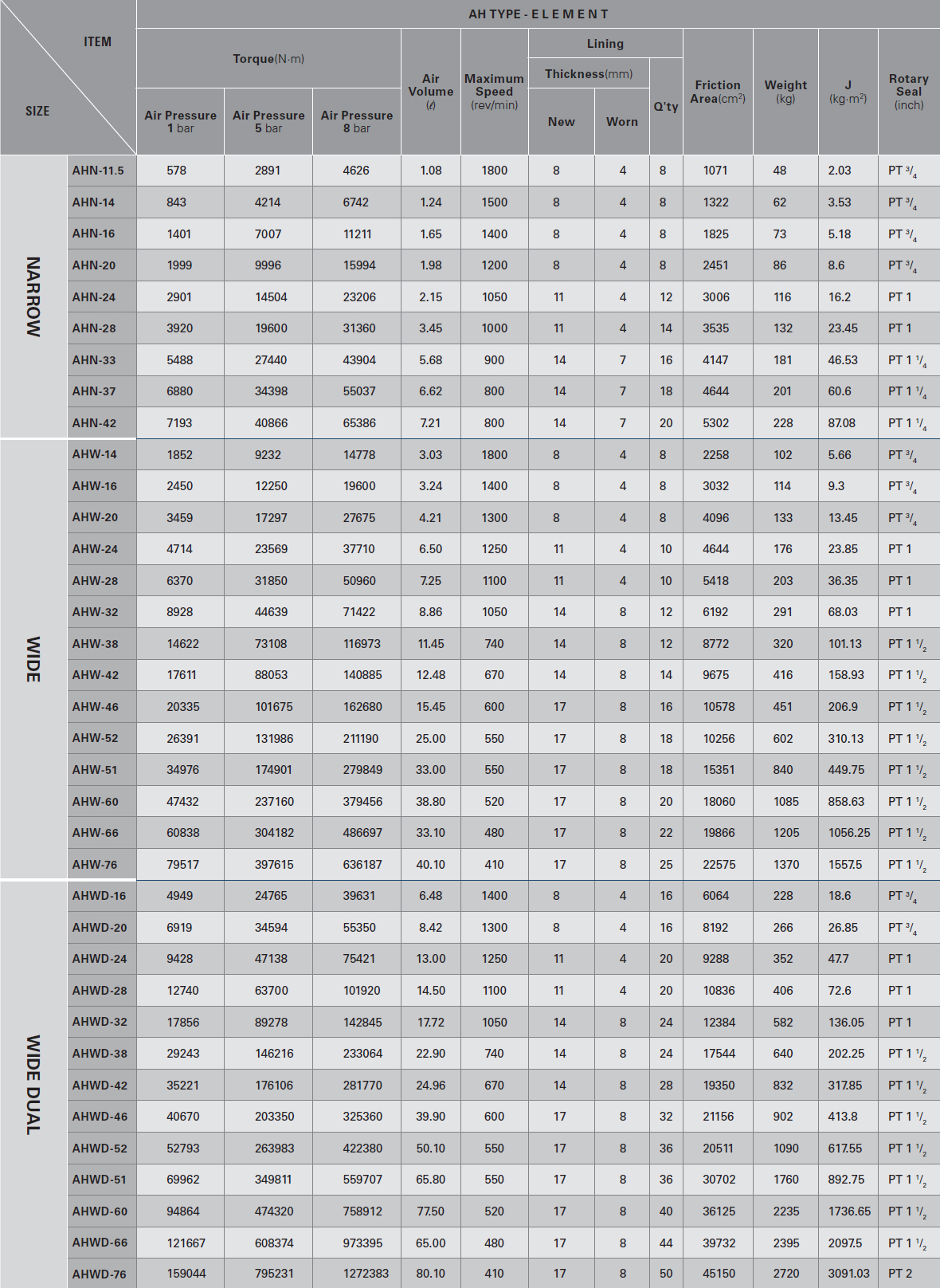

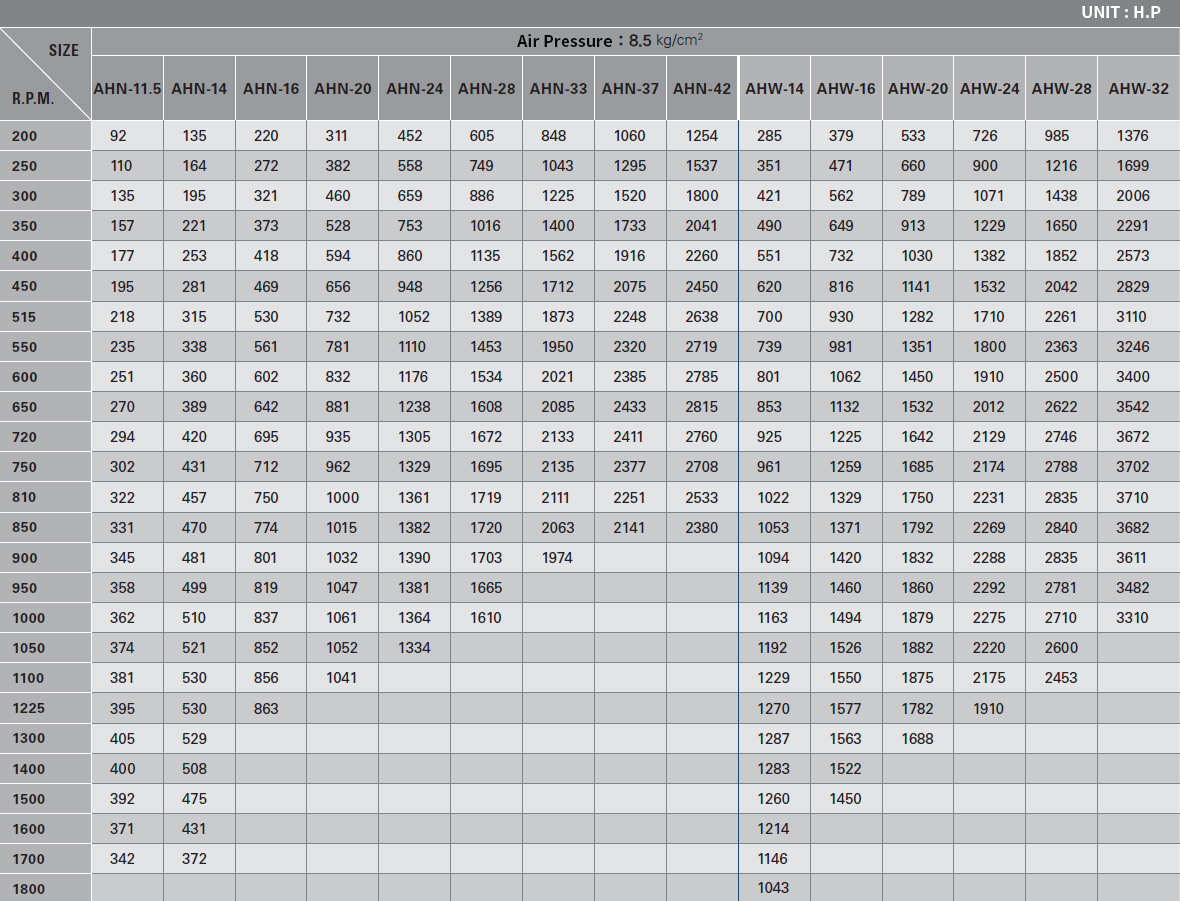

· Technical data

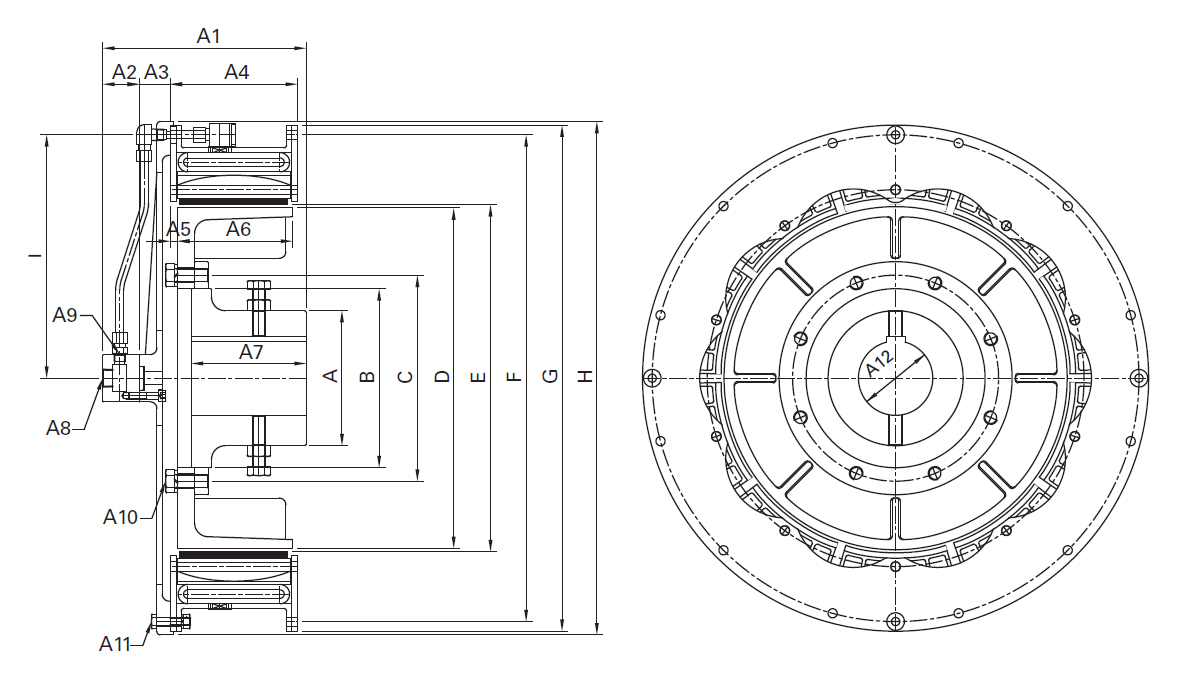

· AHN Drawings

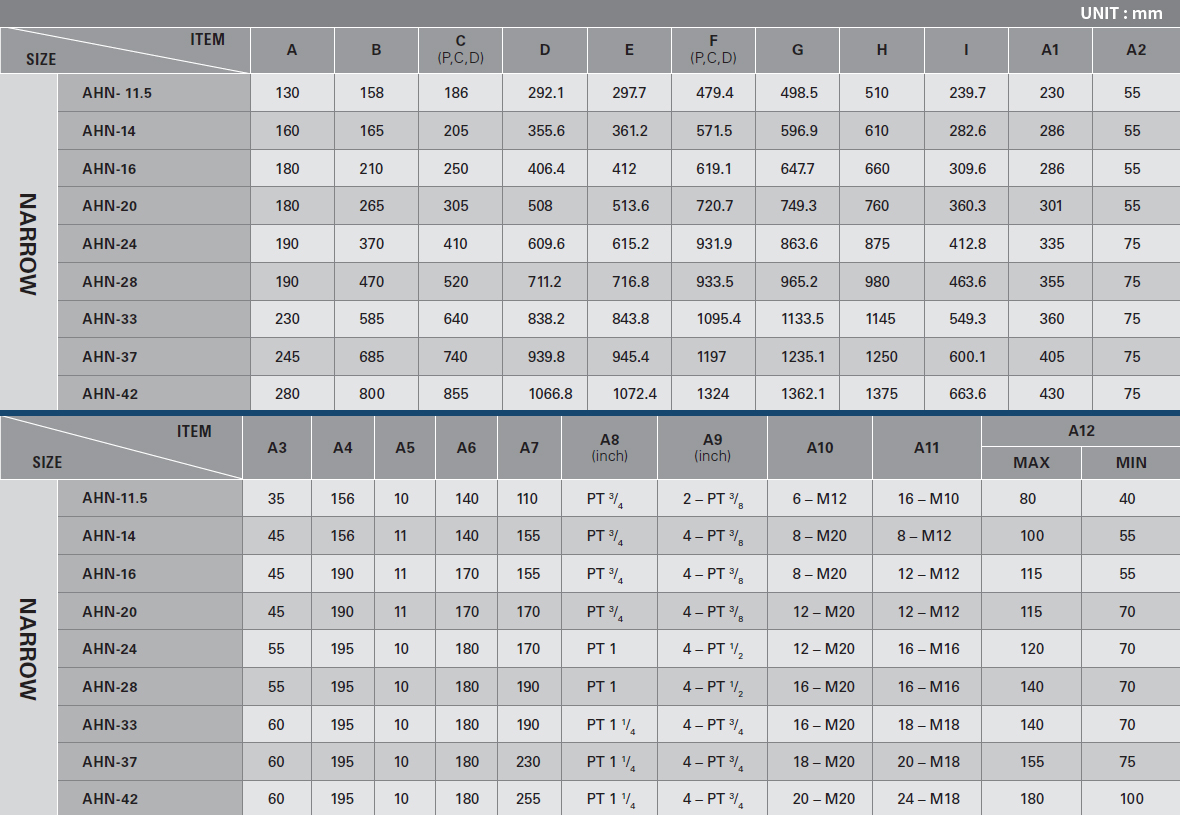

· AHN Dimensions

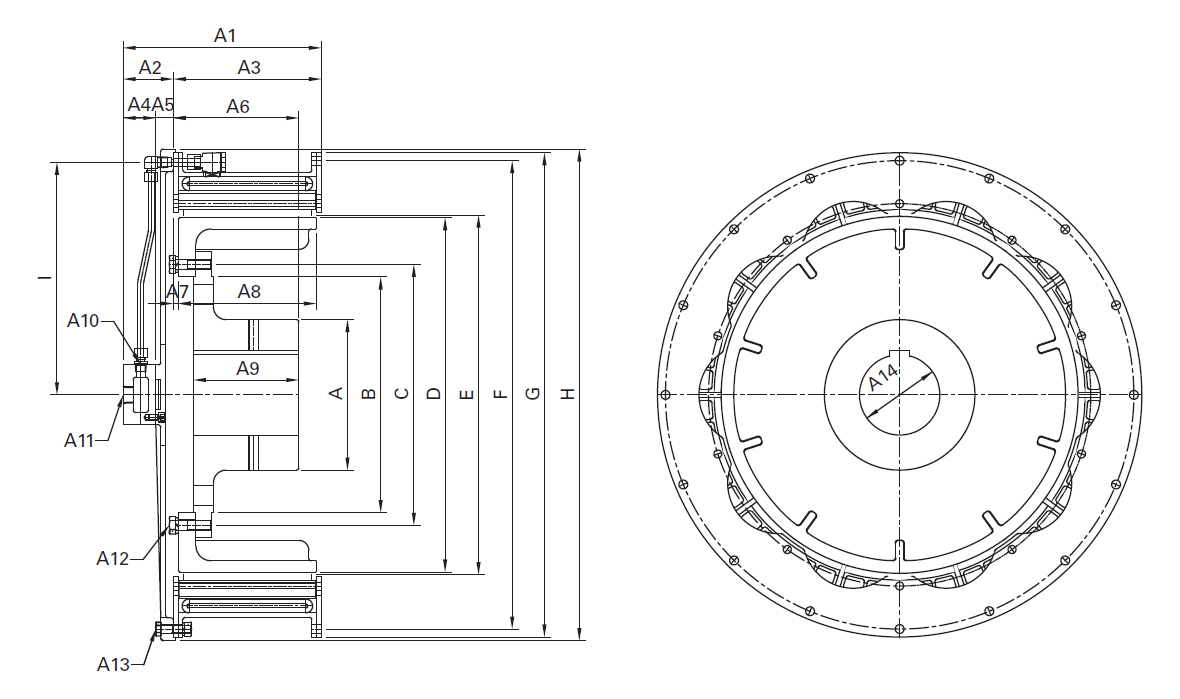

· AHW Drawings

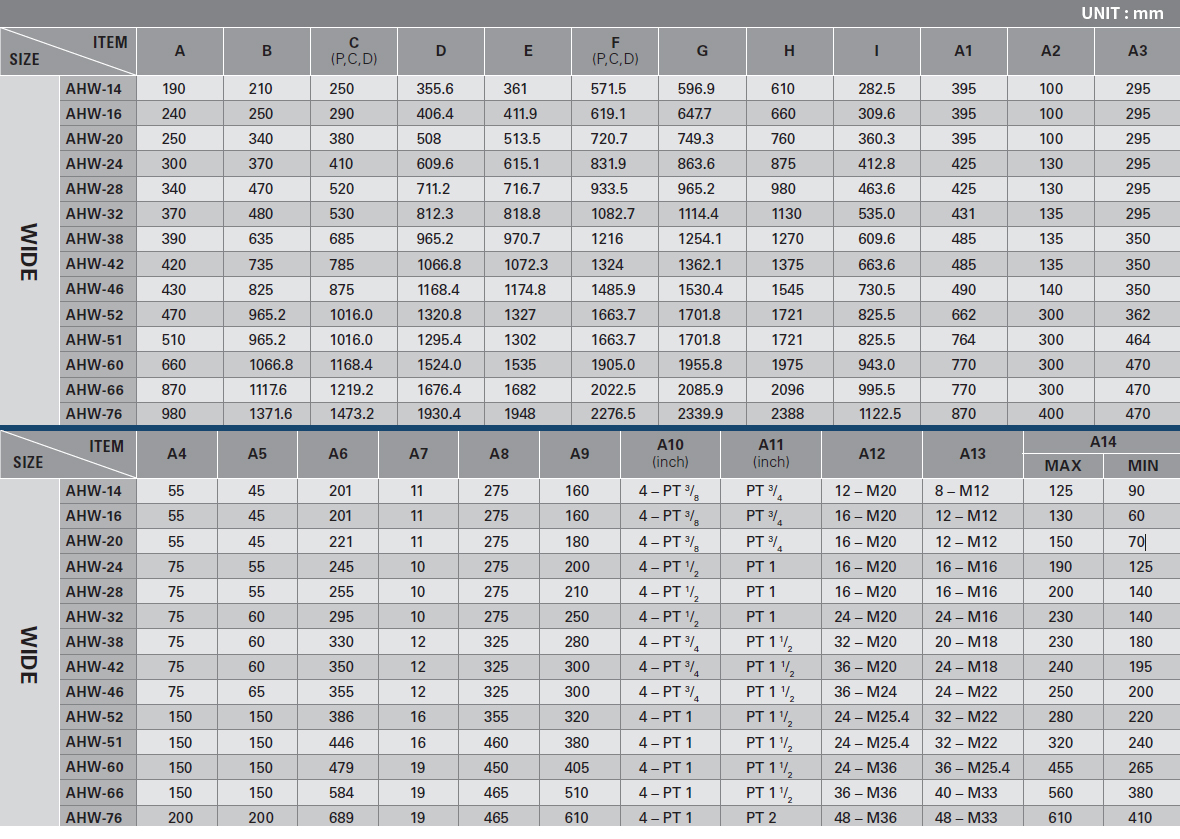

· AHW Dimensions

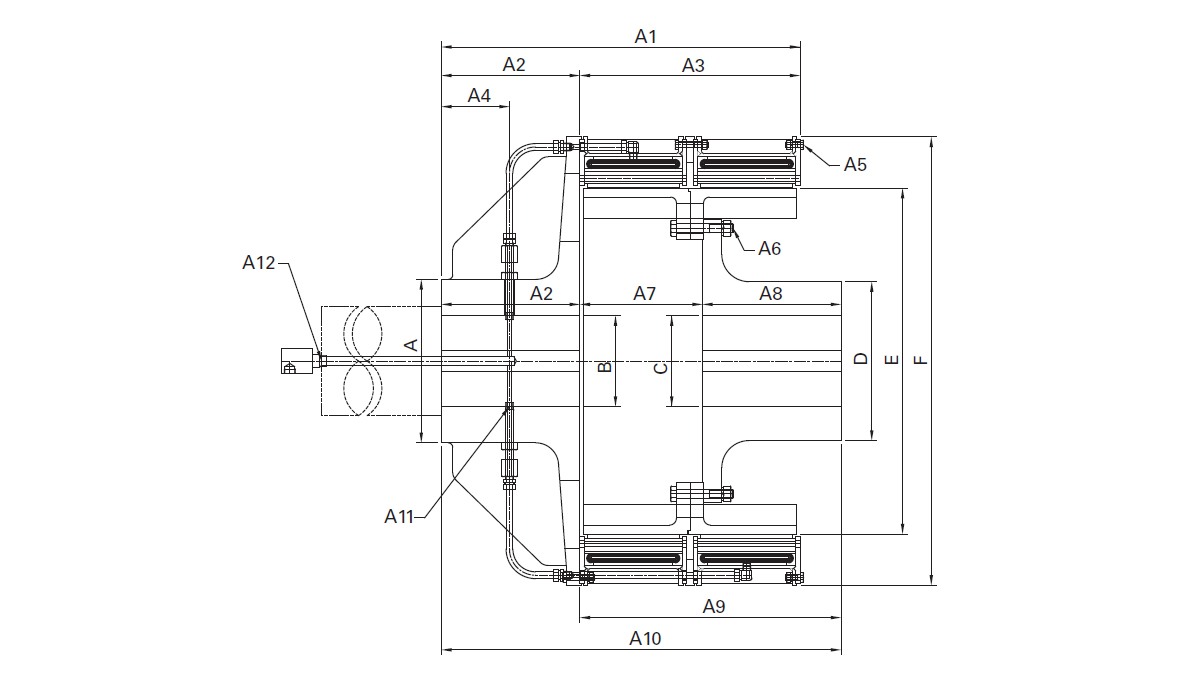

· AHWD Drawings

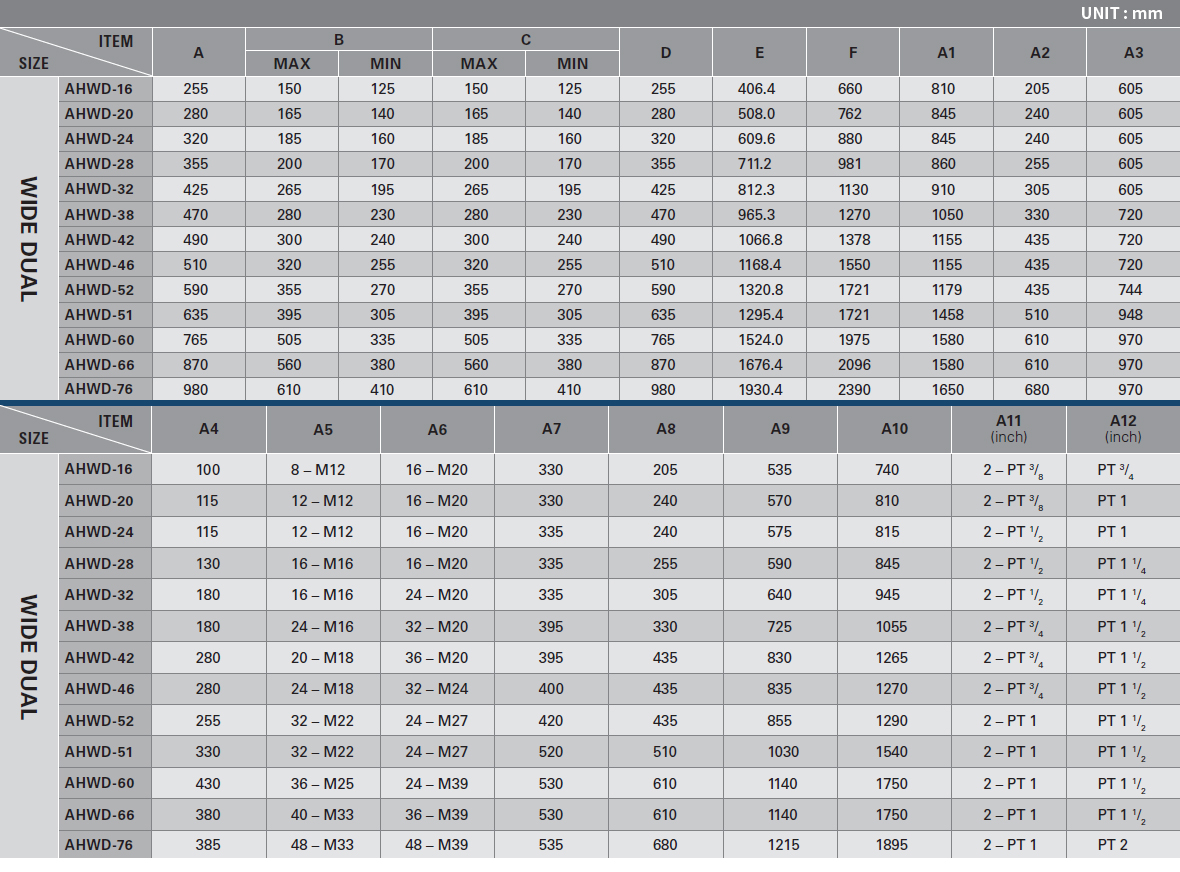

· AHWD Dimensions

· AH Products application
